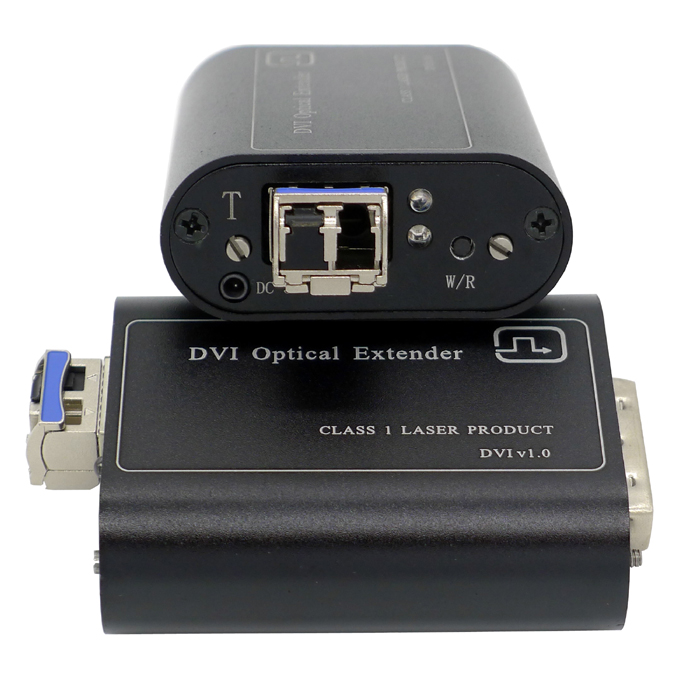

BY-DVI-316SSF is a fiber optic transport system capable of distributing high resolution DVI signals over a single optical fiber with cable lengths up to 10km(SM fiber), the resolution up to 4096×2160 @30HZ. Connect the transmitter with the monitor(display) before use,
click the EDID key on the transmitter to read and write. EDID will be read and stored in the display. the EDID can program itself so that it is able to adapt to the characteristics of different resolution of display system, make its use more convenient and reliable.
Features:
1. supports various high definition resolution ratio transmission, the highest can be reach UXGA 1600*1200 or WUXGA 1920*1200@60Hz or HDTV 1080P 1920*1080@60Hz, 2048x1080,2K/4K.
2. maximum resolution 4096×2160@30HZ .Max bandwidth 11Gbps.
3. Extension distance: over 10 Kilometers over Singlemode Fiber
4. with hot plugable 10Gbps SFP transceiver
Specifications:
Optical：
Wavelength:1310nm
Output Power:-6~-1dBm
Optic fiber:Single Mode Fiber
Rx sensitivity:-16dBm
Optical connector:1 x LC
Distance:10 Kilometers
DVI Input/Output:
Output video:DVI 1.0
Input video signal:0.5～1.0V P-P
Input signal DDC:5V P-P (TTL)
Connector:18+1 DVI Male
General：
Input Power:5 V DC
Power consumption (maximum):2.4W(max)
Operating temperature:-20°C to 70°C
Storage temperature:-40°C to 85°C
Operating humidity:0 ~ 95% (non-condensing)
Net Weight:190g per pair
Case material:Aluminum
Product size:64mm×52mm×22.5mm( L/W/H)
Application:
Be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc
Diagram:
