4K SDI (4 Ch SDI) over Fiber

Part Number BY-SDI-390
Distance 10 Km(SMF)
Detail

Features:

1). Support for 4 independent 3G/HD/SD-SDI channels

2). Transport 4K UHD(uncompressed) up to 10km (6.2 miles)

3). Each Channel supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60). Each channel individually reclocked

4). Embedded audio / metadata support for each channel

5). LED indicators for each channel activity and power.


Description:

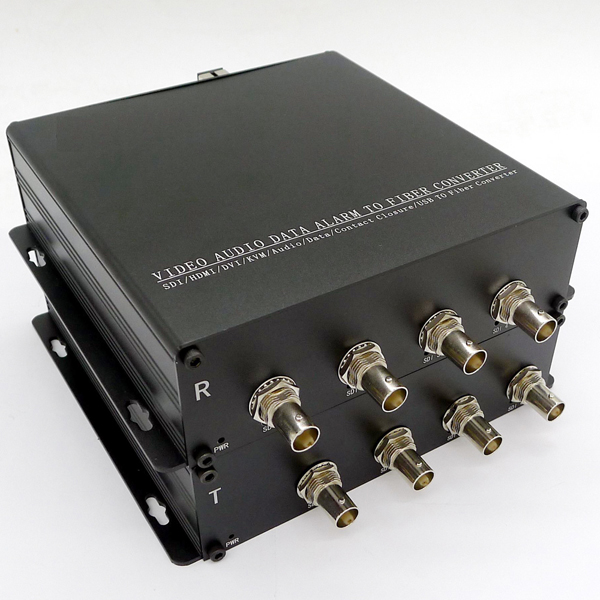

BY-SDI-390 is a self contained fiber transmission kit for the transporting 4 discreet SDI signals (or 4K UHD / 12G uncompressed) over one (1) single fiber link. The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams,

or 4K/UHD up to 10km with zero singla losses. <br><br>Each channel is fully independent. For 4K/UHD application, the signal is splitted over 4 separate 3G SDI links (12G) and supports full 4K/UHD resolution at 60fps. The system is able to combinate SDI signals with a mix of formats and bit-rates if required.<br><br>

If need to add 4 more SDI channels (or 8K / 24G over a single fiber), or add bi-directional Ethernet or Serial RS 232 data into the link.


Specification:

SDI input/output:

Signal format:SMPTE 424M, SMPTE 292M, SMPTE 259M

Data rate:270Mbit/s - 1.48Gbit/s - 3Gbit/s

Cable Equalization Automatic cable EQ (Belden 1694A cable):

250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

SDI interface:BNC 75 Ohm

Number of receiver output: 4 Ch

Number of tranmitter channel: 4 Ch

Fiber interface: 1 x ST/PC, SC,   FC/PC (optional)

Transmitter wavelength: 4 CWDM wavelength from 1470`1610nm

Transmitter output power: -5~0dBm

Receiver sensitivity:-18dBm dBm

General index:

Input power: DC 12V

Power consumption: 8W

Work Temp: -20°C to 55°C

Storage Temp:-40°C to 85°C

humidity: 0 ~ 95% (non-condensing)

Net weight: 2.5KG/pair

Dimensions: 168 mm×154 mm×45 mm


Package:

1. 1 x BY-SDI-390 Transmitter

2. 1 x BY-SDI-390 Receiver

3. 2 x Power Supplies Adapter

4. 1 x Manul


Configuration:

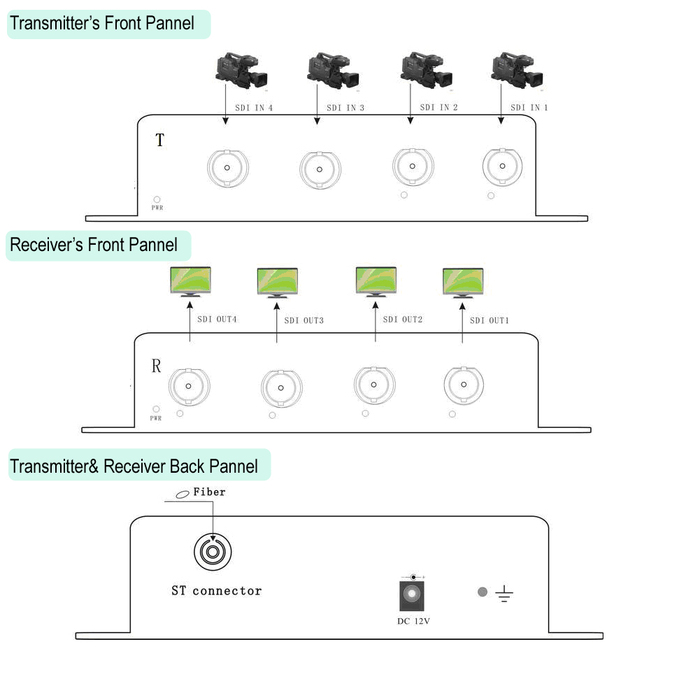

BY-SDI-390 4K SDI-connection copy.jpg

Sell on Amazon, worldwide delivery:


Part NumberLinks on amazon.comQR codes of this amazon link

BY-SDI-390

(4 Ch 3G SDI over 1 fiber)

https://www.amazon.com/dp/B079L4XV6MBY-SDI-390.png
