Product Detail

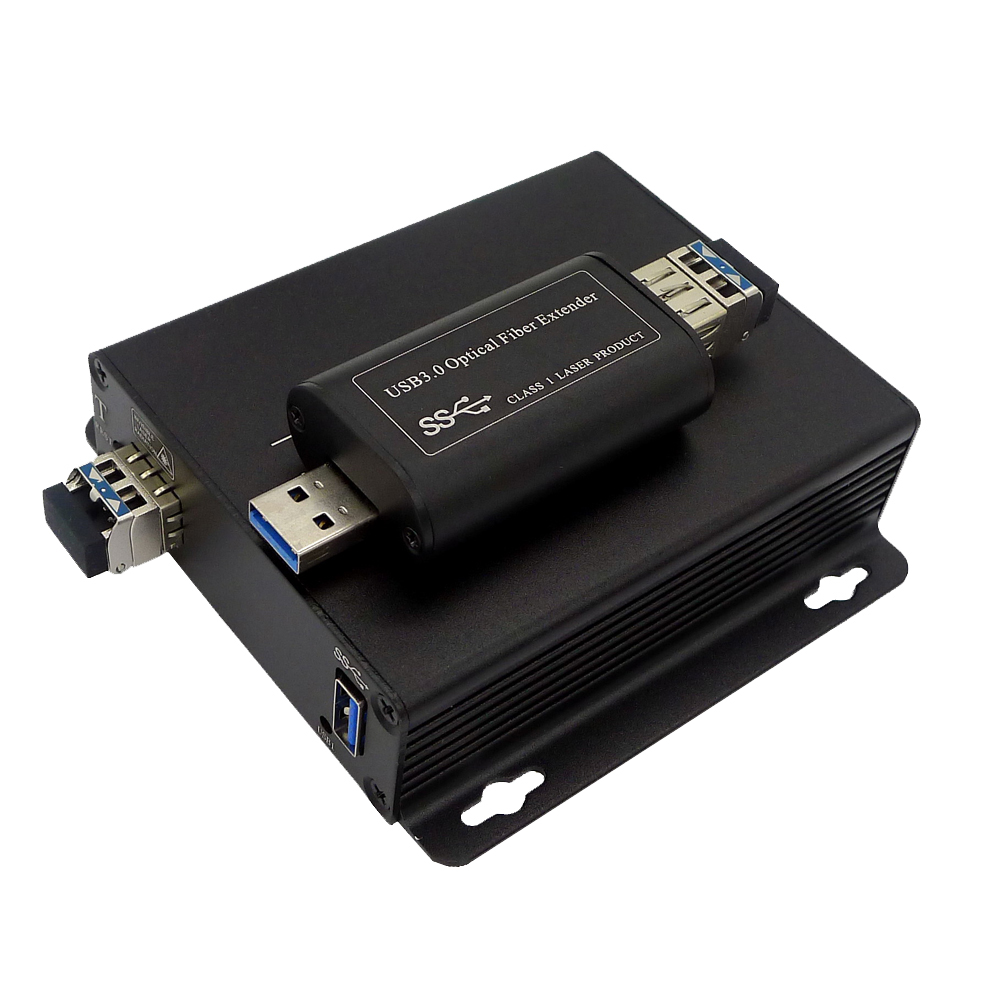

1 Port USB 3.0 over Single-mode Fiber Extender

Part Number BY-USB-396
Distance 250 Meters (820 FT)
Detail

Description:

BY-USB-396 includes a transmitter(client-side) and a receiver(host-side), which can

extend the Superspeed USB 3.0 to a remote location over 2 or 1 core Single-mode fiber cable, Max distance 250 Meters.


Features:

1) Supports Kinect Devices; USB 3.0 Wireless Adapter etc;

2) Max extension distance 250 Meters (820 FT) over 2 or 1 core fiber.

3) with 10 Gbps SFP module, pure hardware design, no driver needed, compatible with all operation systems, support Full Duplex.

4) Support USB 3.0 Superspeed up to 5Gbps, USB 3.0 Type A Receptacle

5) Not backwards compatible with USB 2.0 and USB 1.1


Application:

1.Industrial video transmission

2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).

3.HD video surveillance system.

4.High - speed data acquisition system like FMC & TFM.

5.Remote storage.

6.Digital signage and TV wall.

7.Industrial printer system.

8.Kinect devices and Xbox; USB 3.0 Wireless Adapter etc;


Note:Not backwards compatible with USB 2.0 and USB 1.1


Specification:

Optical

Connector:   1 x LC, 2 x LC optional

Wavelength: 1310nm

Support Fiber types: 9/125μm(SMF)

Physical

Tx Size (L× W ×H):104mm x104mm x28mm

Case Material:Aluminum

Color:Black

N.W.:0.75Kg

PowerVoltage:5V DC

sender power consumption:<5W>

receiver power consumption:<5W>

Environment

Working temperature:0℃-50℃

Storage temperature:-40-85℃

Humidity: 0-95% (non-condensing)


Dimension:

BY-USB-396DF &dimension.jpg

Diagram:

USB 3.0 one core fiber-1.jpg
