4K KVM over Fiber

Part Number BY-KVM-612
Distance 10 Km(SMF)
Detail

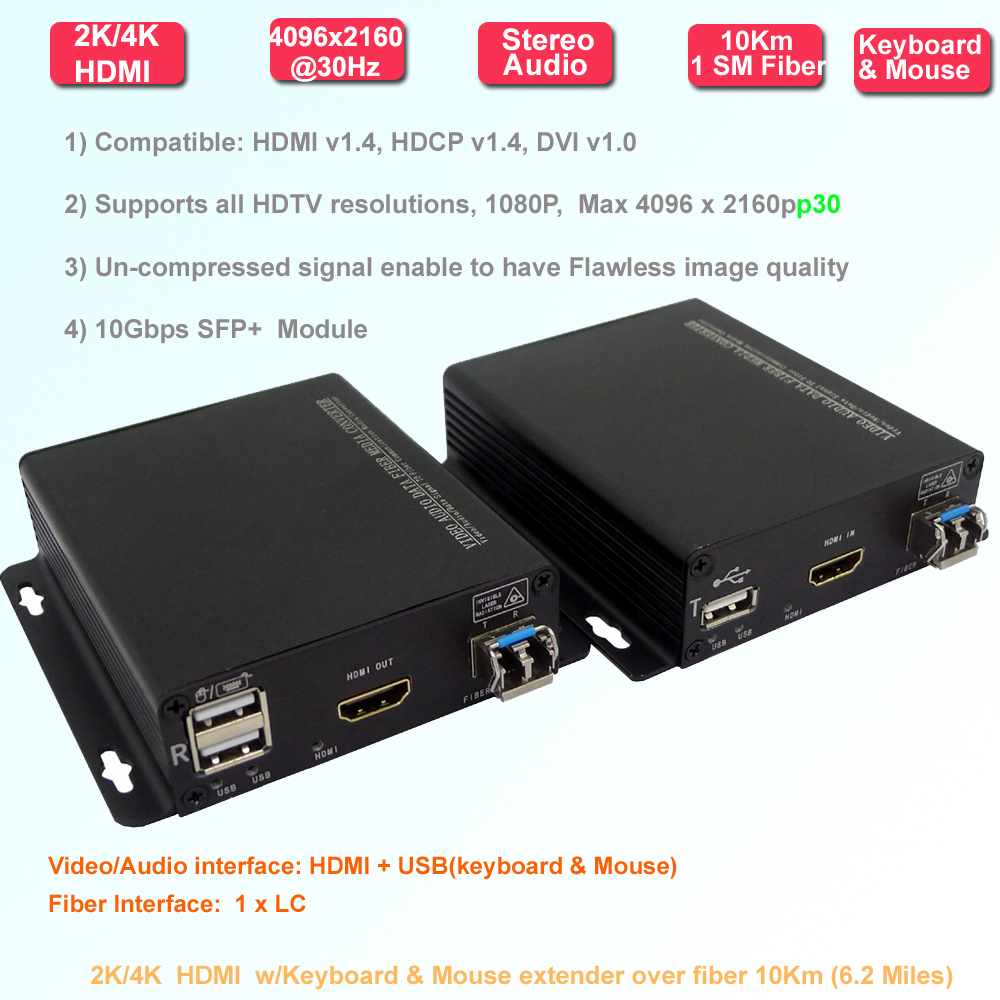

BY-KVM-612 includes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing 4K/2K HDMI (or DVI ) and USB(keyboard or mouse) signals over 1 or 2 fiber cables.


Features:

1). Supports 4K (UHD) resolution formats up to 4096x2160 / 24p/30p; Support USB ports for keyboard or mouse.

2) Max extension distance 10 kilimeters over 1 or 2 core Single-mode Fiber or 500 Meters Multi-mode Fiber

3) Supports 1080p resolution with color depth up to 16 bits/pixel; Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total

4) 10G SFP optical module enable the un-compressed signal for the flawless image quality

5) An HDMI input and USB signals from a source device such as a set-top box or Blue-Ray player is converted into light pulses by 10G SFP transmitter module for transmission over fiber optic. On the display side, an 10G SFP receiver module converts the light pulses back to an HDMI and USB(keyboard or mouse) signals. These features make the equipment a powerful solution for digital display applications that require Hi-quality streaming video.


Specification:

Compliance: DVI v1.0, HDMI v1.4, HDCP v1.4

Maximum Pixel Clock Frequency:up to 340 MHz

Maximum Video Bit Rate:up to 3.4 Gbps per color

Color Depth:up to 16 bits/pixel

Digital Audio:Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio

HDTV Formats:all HDTV resolutions including 1080p, 2K and 4K (UHD) formats

PC Resolutions: up to 4096x2160 / 24p, 30p

Optical:

Optical Transmitter wavelength:1310nm

Fiber Cable Type / Max Length:300 meters over 62.5/125um MMF,500 meters over 50/125um MMF, 10 Kilometers over 9/125μ SM fiber

Interfaces:

HDMI Input / HDMI Output:19-pin female HDMI connectors

Optical connector:   LC/PC

Mechanical:

Dimensions: 104 mm x 104 mm x 28 mm

Weight:700g per pair

Environmental:

Operating Temperature:0° to +50° C

Storage Temperature:-20° to +70° C

Humidity (storage / operating):10% to 90% (non-condensing)

Power Source:

Input: 100~240VAC / 50-60Hz, 0.5A

Output: 5VDC, 2.0A

Maximum Power Consumption:

TX Unit: 3.5 watts

RX Unit: 3.5 watts


USB interface:

TX: 1 port,connect to PC/ HDMI source

RX: 2 ports, connect to Cable keyboard or mouse


Application:

1. Digital entertainment centers

2. Retail stores

3. AV events that require reliable and long-distance distribution.


Diagram:

Panels and configuration.jpg
