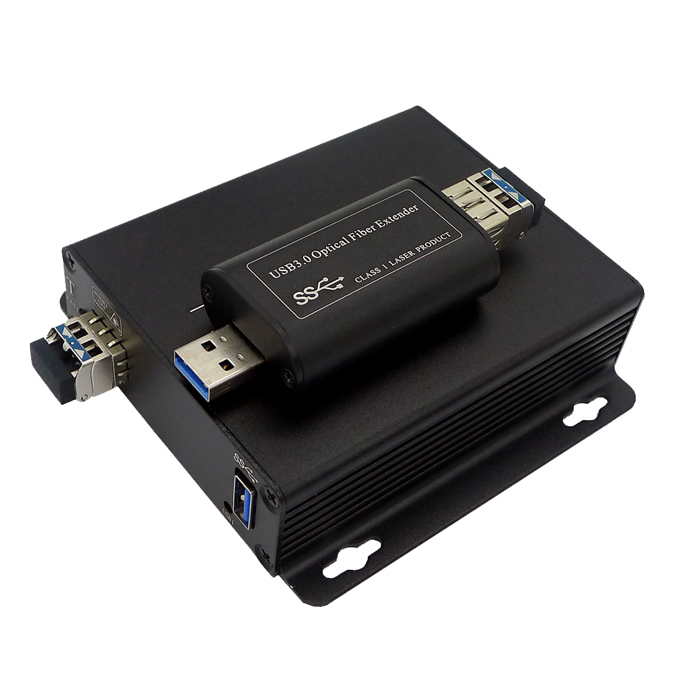

USB 3.0光端机/延长器(单口),向下兼容USB 2.0/1.1

Part Number BY-USB-126
Distance 250 Meters (820 FT)
Detail

Description:

USB 3.0/2.0/1.1 over fiber optical extender includes a transmitter(client-side) and a receiver(host-side), which can extend the Superspeed USB 3.0/2.0/1.1 Signal to a remote location over 2 or 1 core fiber cable, max distance 250 Meters (SM or MM fiber).


Features:

1) Supports Kinect Devices, Leap Motion Devices, Picoscope Oscilloscopes

2) Max extension distance 250 Meters (820 FT) over 1 or 2 core fiber (SM or MM fiber)

3) with 10 Gbps SFP module, pure hardware design, no driver needed, compatible with all operation systems, support Full Duplex.

4) Support USB 3.0 Superspeed up to 5Gbps, USB 3.0 Type A Receptacle

5) Backwards compatible with USB 2.0 and USB 1.1


Application:

1.Industrial video transmission.

2.USB 3.0 Vision cameras such as Balser Camera for Machine Vision systems like ROV (Remotely Operated Underwater Vehicle).

3.HD video surveillance system.

4.High - speed data acquisition system like FMC & TFM.

5.Remote storage.

6.Digital signage and TV wall.

7.Industrial printer system.

8.Kinect devices/Xbox, Leap Motion, Picoscope Oscilloscopes


Note:

backwards compatible with USB 2.0 and USB 1.1 devices like keyboard & Mouse.


Specification:


Each USB port supports Data rates

* Super-Speed (5.0 Gbps)

* High-Speed (480 Mbps)

* Full-Speed (12 Mbps)

* Low-Speed (1.5 Mbps)

Optical

Connector: 1 x LC, 2 x LC optional

Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF),   9/125μm(SMF)

Wavelength:1310nm

Physical

Size (L× W ×H):104mm x104mm x28mm

Case Material:Aluminum

Color:Black

N.W.:0.75Kg

PowerVoltage:5V DC

sender power consumption:<5W

receiver power consumption:<5W

Environment

Working temperature:0℃-50℃

Storage temperature:-40-85℃

Humidity: 0-95% (non-condensing)


Dimension:

BY-USB-396DF &dimension.jpg


Diagram:

Leap motion & Oscilloscopes.jpg

Sell on Amazon, worldwide delivery:


Part NumberASIN in amazon.comQR codes of this amazon links

BY-USB-126DF

(over 2 fibers)

https://www.amazon.com/dp/B07Q38J3MF?ref=myi_title_dp


BY-USB-126SF

(over 1 fiber)

https://www.amazon.com/dp/B07R76VLMD?ref=myi_title_dpBY-USB-126SF.png
